Fixed Frame Projection Screen Portfolio
Da-Lite offers a wide range of fixed frame projector screens available with Parallax® Pure (True Optical) and Parallax Stratos (Contrast Based), ALR screen surfaces as well as 16K ready HD Progressive screen sufaces.
Whether your installation calls for a thin, thick or wraparound/borderless frame, customization options or the ability to be flown, we have a fixed frame solution for your challenge. Below you'll find a simple breakdown of our offerings as well as a handy tool for direct product comparison.
Products Available with Parallax Pure (True Optical) ALR Screen Surfaces
Thin Frame

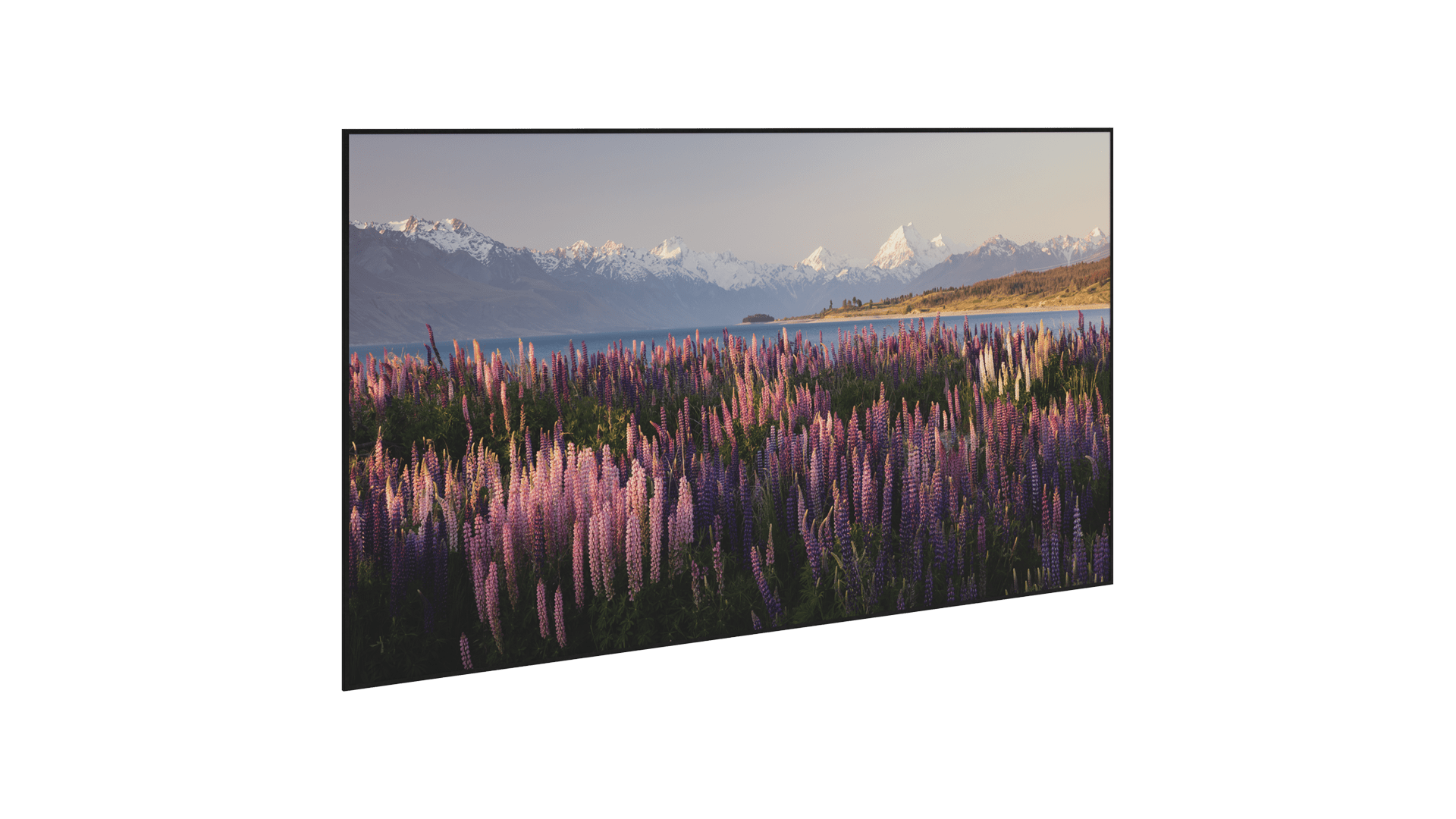

Parallax Thin
Da-Lite's Parallax® Thin screen has been re-engineered to offer a convenient alternative to rigid screens that ship assembled in large crates. This innovative solution offers wider sizes with a smaller shipping footprint, enhancing logistics and cost-efficiency. Specifically designed for ultrashort throw projectors, this 1/2" thin bezel fixed frame screen features the new Ambient Light Rejection (ALR) screen surface - Parallax® Pure UST 0.6. Available in 16:9 HDTV and 21:9 Ultrawide formats it complements our extensive 21:9 offering, ideal for larger spaces with Microsoft Teams Front Row setups or collaboration spaces where ambient light control is essential.
Thick Frame

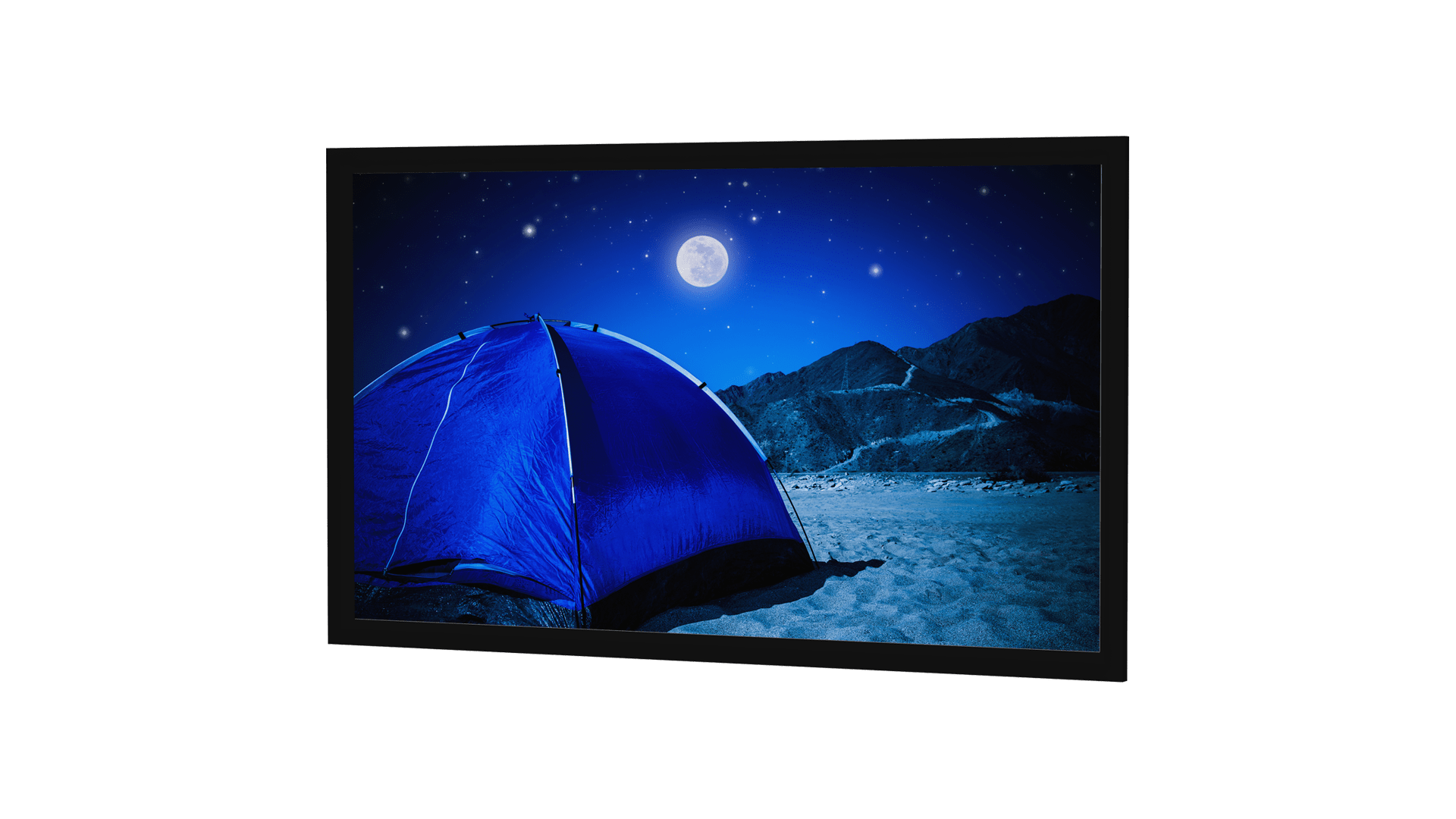

Parallax
Da-Lite's Parallax® is a 2.5" thick bezel fixed frame that comes standard with Pro-Trim® finish to help absorb light surrounding the viewing area. This screen features Ambient Light Rejection (ALR) surfaces including Parallax® Pure 0.45 and Parallax Pure 0.8 that attach to the back of the frame with O-rings. Available in 16:9 HDTV, 16:10 Wide, 2.35:1 Cinemascope, and 21:9 Ultrawide formats, it complements the brand’s extensive 21:9 product offering. This screen is ideal for Pro AV as well as residential installations.
Products Available with Parallax Stratos (Contrast Based) ALR Screen Surfaces
Thin Frame

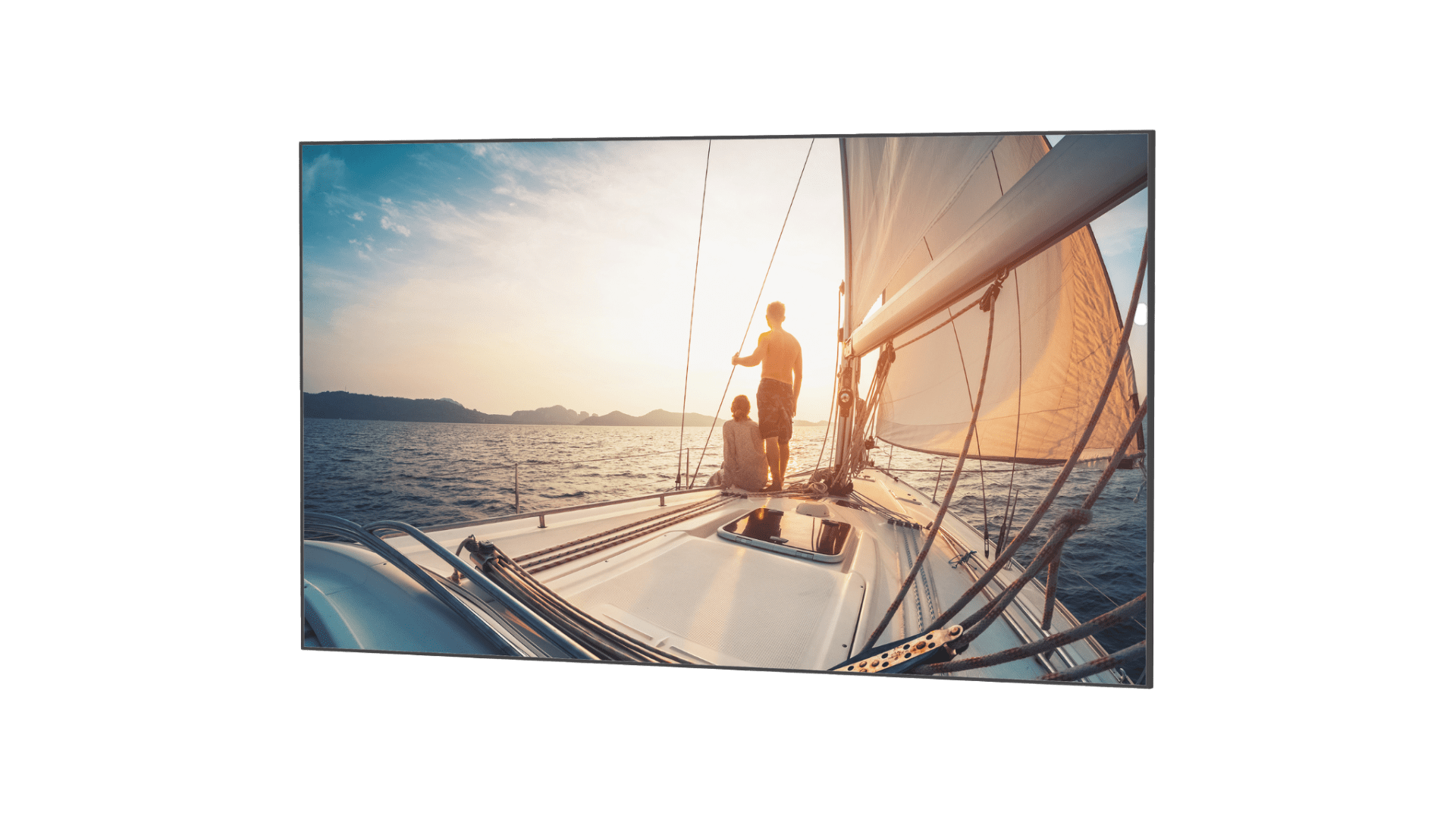

UTB Contour
The UTB Contour has an ultra thin bezel frame and low profile. Designed to look like a large flat panel, the UTB Contour can more than double the size of the largest flat panel televisions available.
Thick Frame

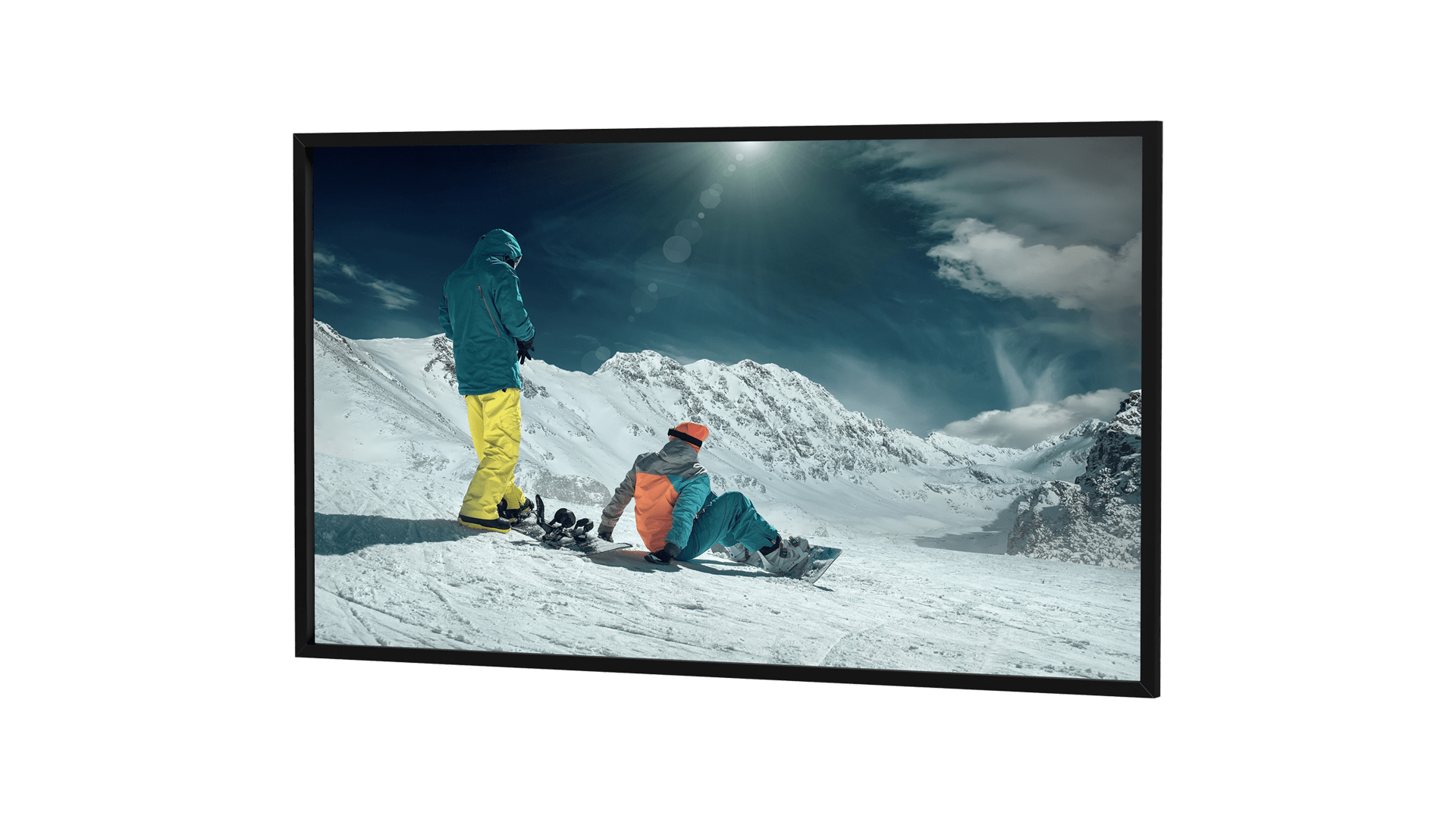

Da-Snap
The Da-Snap allows for versatile frame options with customization features that include curved frames and wrap around surfaces. The Da-Snap can be mounted on the wall or in a wall opening.

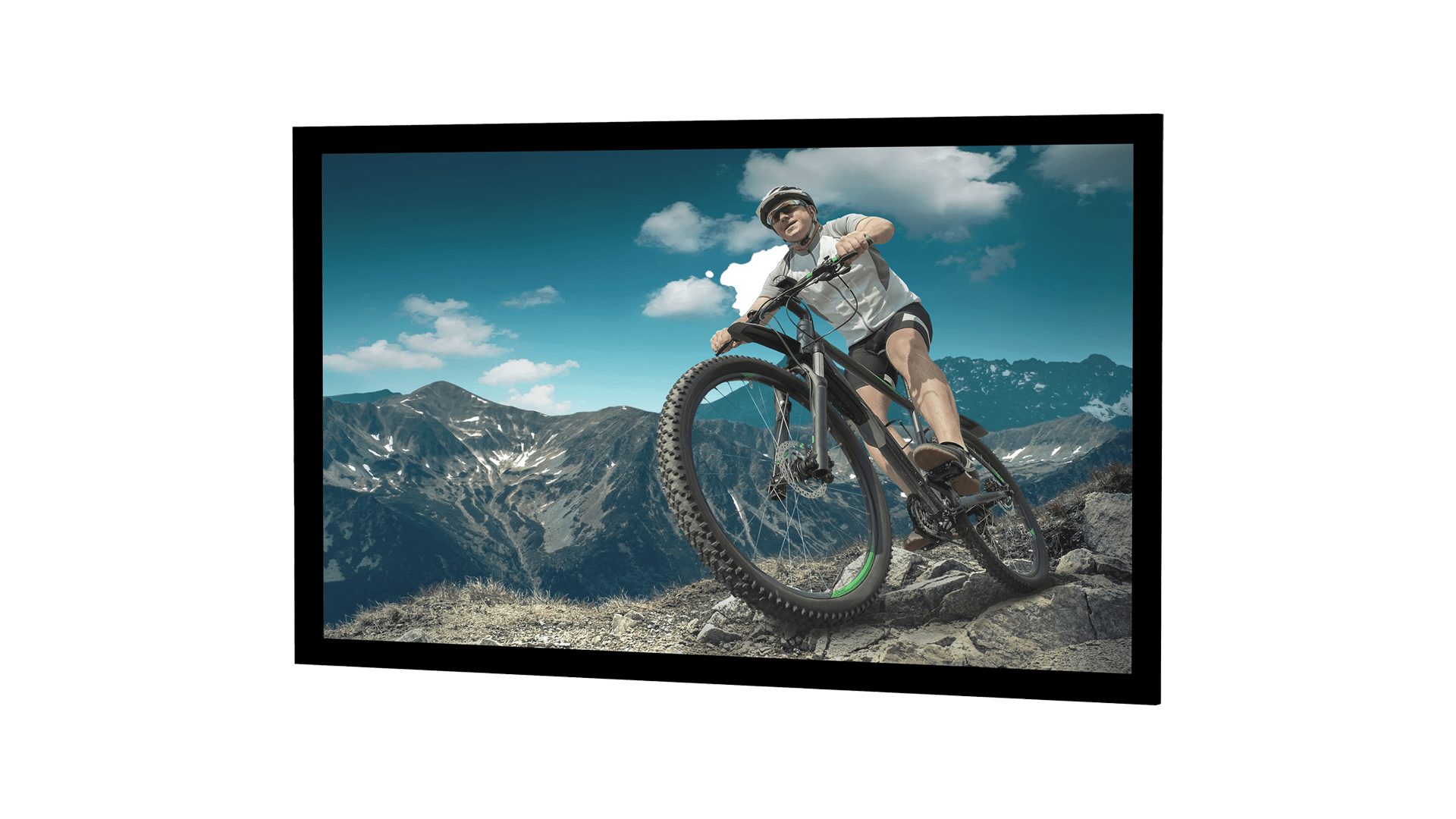

Cinema Contour
The Cinema Contour® features a wider, more substantial frame as well as the latest technology in projection surfaces designed for 4K and Ultra HD to maximize the technology of your projector. The larger standard black frame gives the eye a point of reference and enhances contrast for film purists and aficionados.

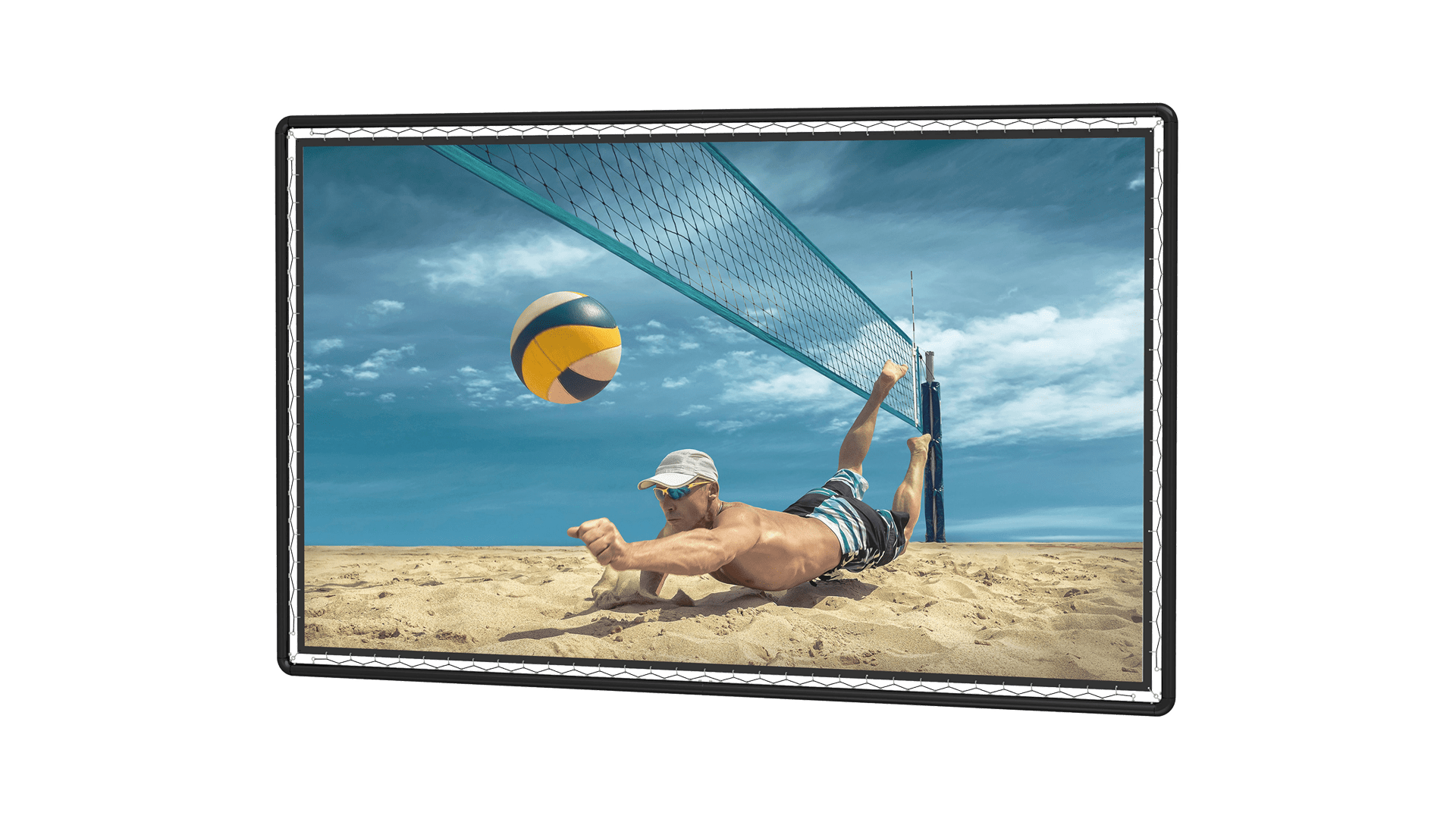

Series 200 Lace and Grommet
The Series 200 Lace and Grommet Frame is for auditoriums, theaters and other large venues, and is recommended for use with Da-Lite’s front projection screen surfaces in sizes up to 30’ wide, and rear projection surfaces up to 20’ wide.

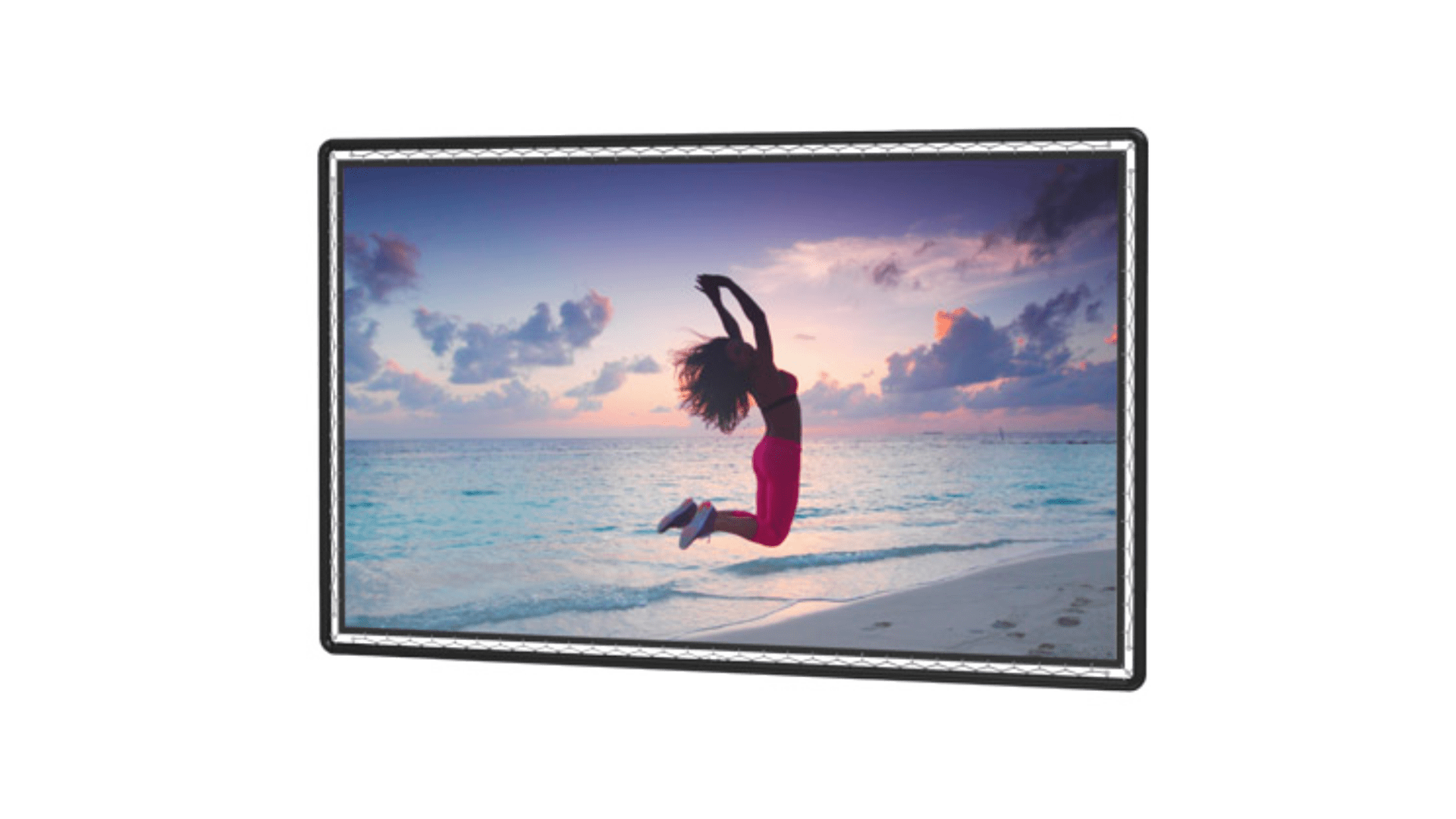

Series 300 Lace and Grommet
The Series 300 Lace and Grommet Frame is for auditoriums, theaters and other large venues and is recommended for use with Da-Lite’s front projection screen surfaces in sizes up to 90’ wide, and rear projection surfaces up to 40’ wide.

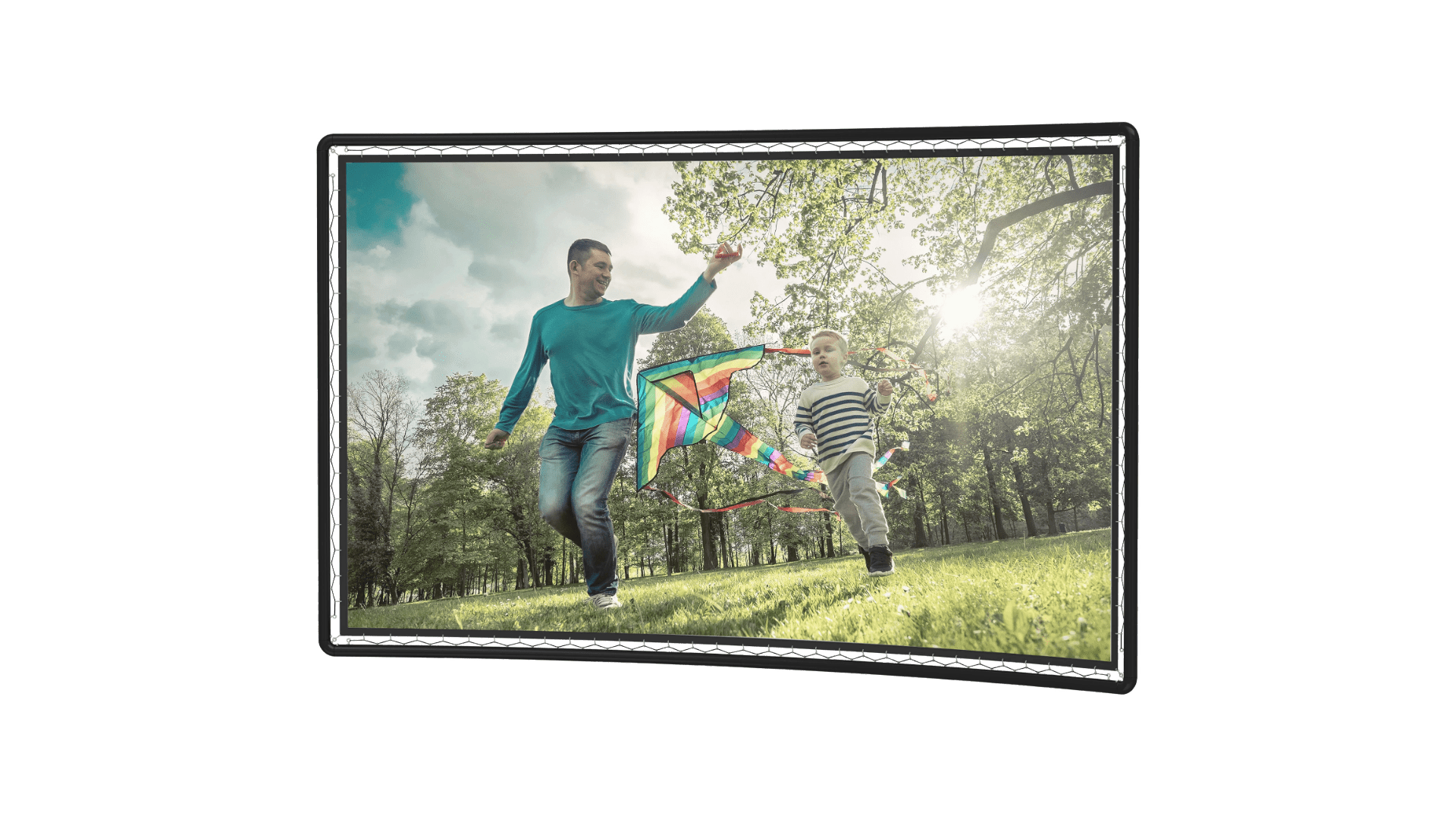

Curved Series 200 Lace and Grommet
The Curved Series 200 Lace and Grommet Frame is a curved frame for front and rear projection surfaces in auditoriums, theaters and other large venues.

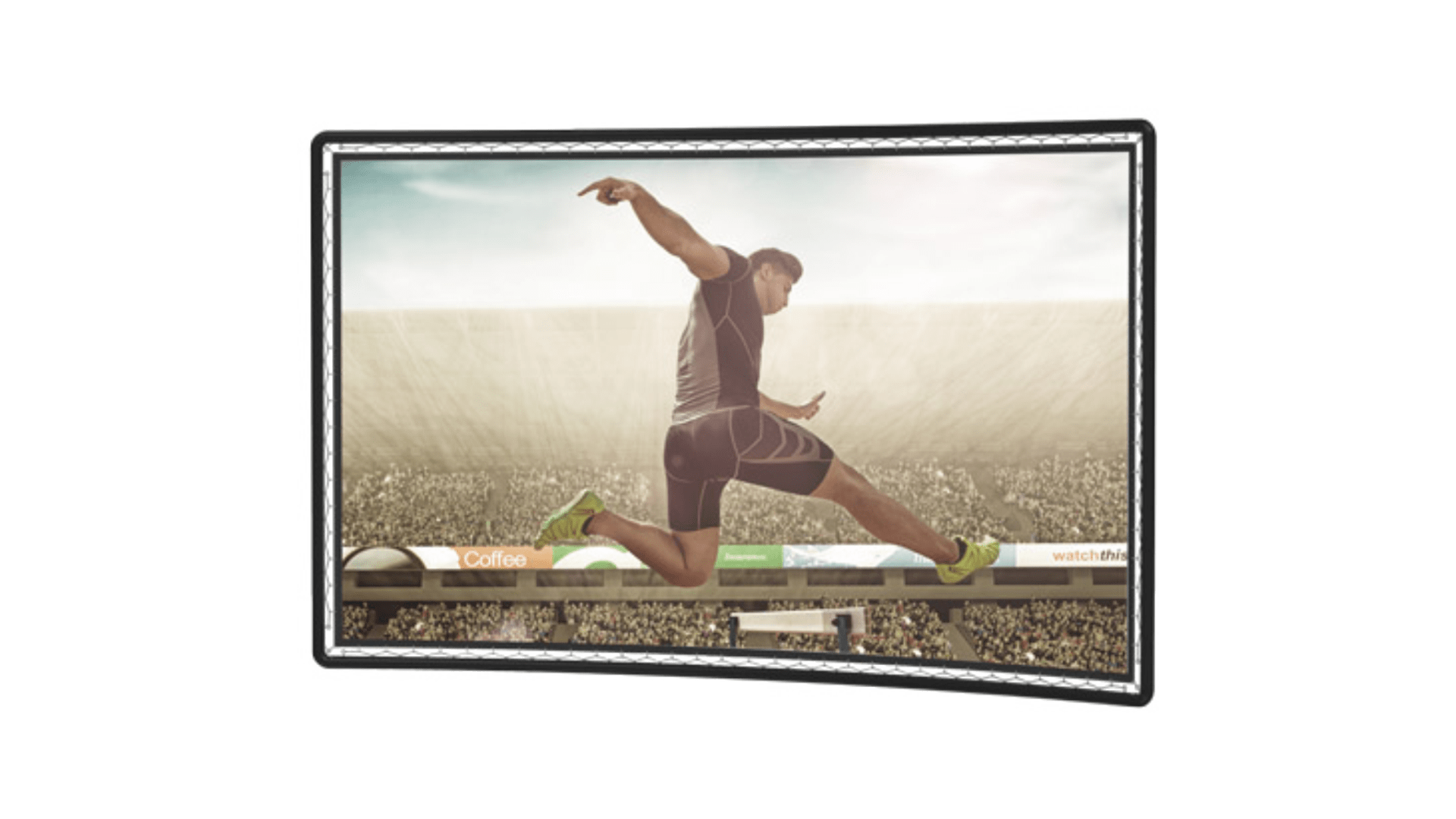

Curved Series 300 Lace and Grommet
The Curved Series 300 Lace and Grommet Frame is a curved frame for front and rear projection surfaces in large venue, digital edge blending and simulation applications.
Wrap Around/Borderless

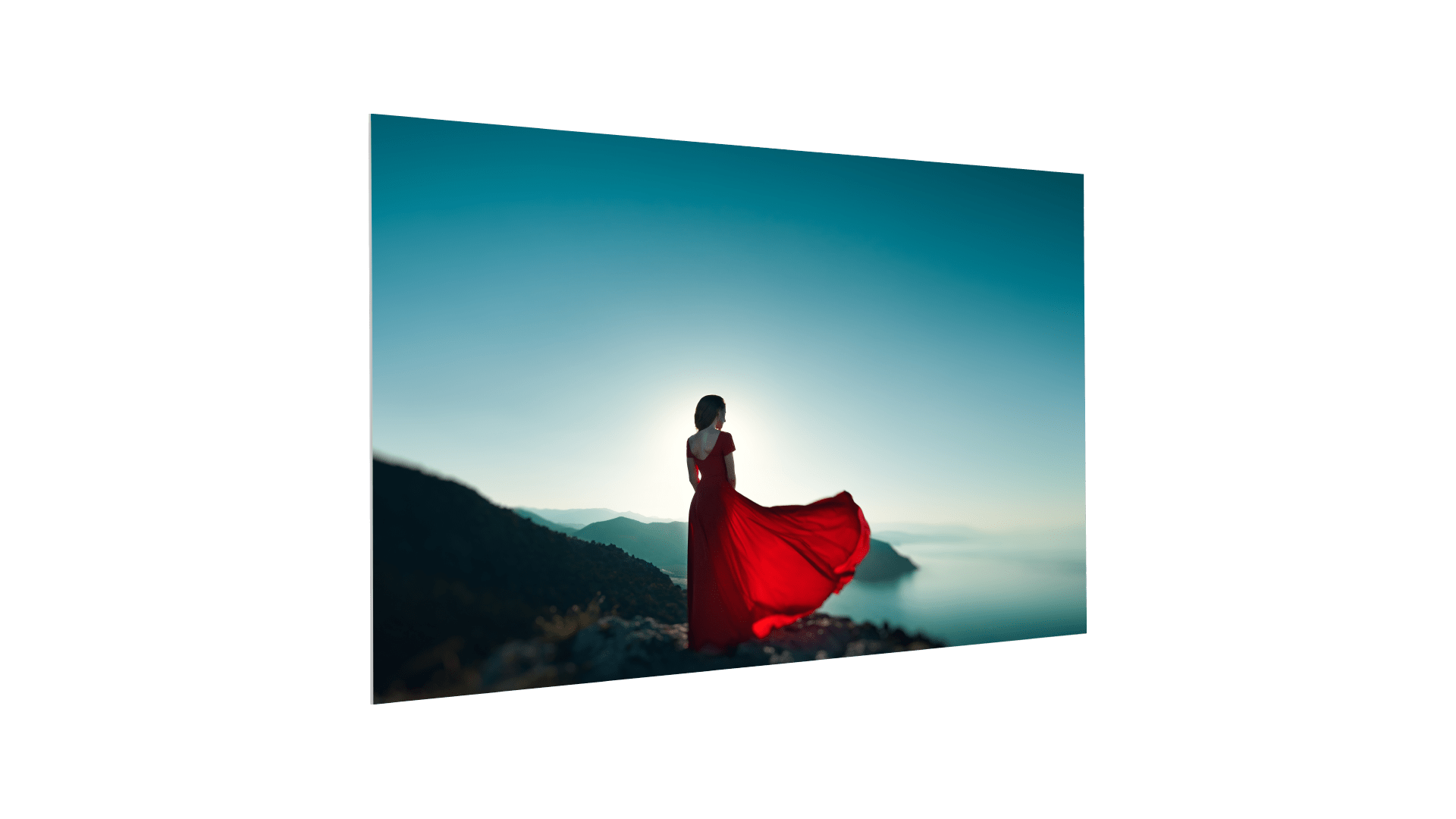

Full Vision
The FullVision is a borderless fixed frame projection screen that enables the entire surface to be used for projection. Modern and low-profile, FullVision is a great choice for any room where the screen should blend into the environment when not in use and deliver the very best in projection when the projector turns on.
Size 'em Up!
| Parallax Thin | Parallax | Series 200 Lace and Grommet | Series 300 Lace and Grommet | Curved Series 200 Lace and Grommet | Curved Series 300 Lace and Grommet | UTB Contour | Cinema Contour | Da-Snap | Full Vision | |
| Size Range 16:9 HDTV Format | 92"-120" diagonal | 77"-120" diagonal | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 90' wide (front) Custom up to 40' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Customup to 90' wide (front) Custom up to 40' wide (rear) | 77"-220" diagonal | 77"-220" diagonal | 77"-220" diagonal | 82"-220" diagonal |
| Size Range 16:10 Wide Format | 84"-109" diagonal | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 90' wide (front) Custom up to 40' wide (rear) | 94"-226" diagonal | 94"-226" diagonal | 94"-226" diagonal | 94"-226" diagonal | |
| Size Range 21:9 Format | 104"-152" diagonal | 104"-154" diagonal | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 90' wide (front) Custom up to 40' wide (rear) | 104"-208" diagonal | 104"-208" diagonal | ||
| Size Range 2.35:1 Cinemascope Format | 96"-148" diagonal | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 30' wide (front) Custom up to 20' wide (rear) | Custom up to 90' wide (front) Custom up to 40' wide (rear) | 96"-199" diagonal | 96"-208" diagonal | 96"-199" diagonal | ||
| Frame Width | 1/2" | 2 1/2" | 2" | 3" | 2" | 3" | 1/4" | 3" | 1 1/2" | NA (frame concealed) |
| Frame Depth | 1 5/8" | 1 1/2" | 2" | 3" | 2" | 3" | 1 9/64" | 1 5/8" | 1 1/2" | 1 3/16" |
| ProTrim Standard | ✔ | ✔ | ✔ Optional Pro-Trim Cover |
✔ Optional Pro-Trim Cover |
✔ Optional Pro-Trim Cover |
✔ Optional Pro-Trim Cover |
✔ | ✔ Optional |
||
| Can be Flown | ✔ With eyebolts on top of frame and with spreader bars |
✔ With eyebolts on top of frame and with spreader bars (front projection) |
✔ With eyebolts on top of frame and with spreader bars (front projection) |
✔ With eyebolts on top of frame and with spreader bars (front projection) |
✔ With eyebolts on top of frame and with spreader bars (front projection) |
✔ With eyebolts on top of frame and with spreader bars |
✔ With eyebolts on top of frame and with spreader bars |
✔ With spreader bars |
||
| Available with Parallax Pure (True Optical) ALR Surfaces | ✔ | ✔ | ||||||||
| Available with Parallax Stratos (Contrast Based) ALR Surfaces | ✔ | ✔ | ✔ | |||||||
| Thin Frame | ✔ | ✔ | ||||||||
| Thick Frame | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| Wraparound/Borderless | ✔ Optional |
✔ | ||||||||
| Frame Conceals Surface Attachment Method | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||
| Front Projection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Rear Projection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||
| Ships Flat (unassembled) | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Can be Customized | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Surface-to-Frame Attachment Method | Springs | Elastic O-Ring | Lacing Cord and S Hooks | Lacing Cord and S Hooks | Lacing Cord and S Hooks | Lacing Cord and S Hooks | Metal Grommets | Metal Snaps | Metal Snaps | Velcro |
