ViewShare Fusion

360 Overview

ViewShare Fusion Video Conferencing Kits

ViewShare Fusion provides a simple solution for the huddle space era of video conferencing. The kits package all the necessary video conferencing accessories in to a single SKU – mount accessory with camera, speakerphone, USB hub and cable. Compatibility with Fusion Series cart, stand and wall mounts makes ViewShare a flexible solution for a variety of environments.

Need a few more reasons?

ViewShare's components are Skype™ for Business Certified, and optimized for Lync™ and Skype
HD Camera can be installed above, below or between displays
Fast and easy to setup, and simple to use
Easy USB connectivity

Connect and Call

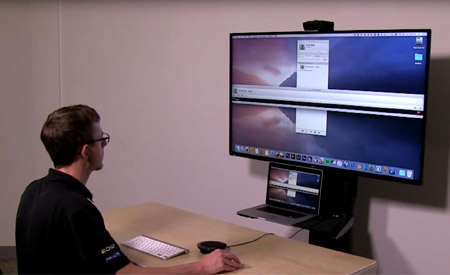

See how easy it is to install and use ViewShare Fusion.

What's Included

FCA800VE
The complete FCA800VE extended ViewShare kit for above/below
camera placement

FCA820 Camera
Mount accessory with integrated Logitech® C930E HD webcam
(FCA820V accessory shown)

Jabra Speakerphone
Jabra® SPEAK 410 MS
USB speakerphone

USB Hub
Belkin® powered USB hub

Cable
10' (305 cm) USB 2.0 type A cable

Black Box® Extender
Black Box® USB to CAT5 extender with power supply (on E models only)

Ordering Options	Huddle Spaces & Small Conferencing Rooms			Large Conferencing Rooms
	FCA800V Large Displays	FCA810V XL Displays	FCA820V Large or XL Displays	FCA800VE Large Displays	FCA810VE XL Displays	FCA820VE Large or XL Displays
	Above/Below Camera Placement		Center Camera Placement	Above/Below Camera Placement		Center Camera Placement
Jabra® 410MN Speaker Phone	X	X	X	X	X	X
Black Box® USB to CAT 5 Extender				X	X	X
Black Box® USB A/B Female to Female Gender Changer	X	X	X
10' (305 cm) USB 2.0 Type A Cable	X	X	X	X	X	X
Belkin USB Hub	X	X	X	X	X	X
Fusion® Accessory & ViewShare Camera	X	X	X	X	X	X

We Have Got You Covered

From huddle spaces to boardrooms, Chief and Da-Lite have the ViewShare solutions to outfit any environment.

Huddle spaces
Chief

Conferencing rooms
Chief or Da-Lite

XL spaces
Da-Lite

Drivers & Downloads

Logitech Webcam C930e
Jabra® SPEAK 410 MS
ViewShare Fusion Technical Documents
ViewShare Fusion Brochure

System Requirements

Windows 7 or 8
Mac OS X 10.7 or higher
2.4 GHz Dual Core processor or better
2 GB RAM or more
USB 2.0 port (USB 3.0 ready)
Technical Specifications

Get tech specs for the mount accessory, Logitech webcam and Jabra speakerphone in our comprehensive ViewShare Fusion Brochure.
FAQs
Visit our support page

Related Products
Features
Videos

Features

HD camera accessory can be installed above, below or between displays.
Easy USB connectivity
The Logitech C930e and Jabra SPEAK components included with ViewShare are both Skype for Business Certified, and optimized for use with Skype and Lync.

Includes:

Fusion mount accessory with integrated HD camera
10' (305 cm) USB cable
USB speakerphone
Powered USB hub
USB A/B gender adapter (Only on non-extender versions)
Local USB to CAT5 extender with power supply (only on extender versions)

Logitech Webcam:

Full HD 1080p video calling (up to 1920 x 1080 pixels) with supported clients
Supports H.264 SVC 1080p for Microsoft® Lync™ 2013, along with optimizations for best call performance in single or multiparty HD video
90 degree field of view
Rightlight™ 2 Technology for clear image in various lighting environments, even low light
Optional light application for control of pan, tilt and zoom
Carl Zeiss® lens certification
Hi-Speed USB 2.0 certified (USB 3.0 ready)

Jabra SPEAK 410 MS:

Connects via USB
Microsoft Certified
Wideband Hifi Frequency Response
Digital Signal Processing (DSP) digitally optimizes voices and suppresses echoes
Omni-directional/noise filter eliminates background noise
Standard (E-STD) Microphone Sensitivity - Standard (STD) variation microphone sensitivity is comparable to a normal telephone receiver and is used in most telephone devices

System Requirements:

Windows 7 or 8
Mac OS X 10.7 or higher
2.4 GHz Intel® Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port (USB 3.0 ready)

Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-100 of the Canadian Electrical Code, part 1, CSA C22.1.
